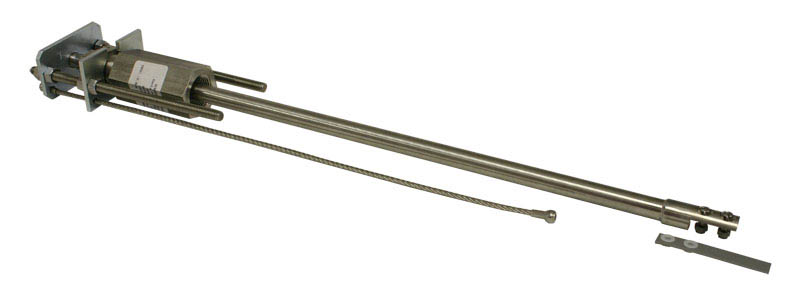

Retractable Coupon Holders and Coupons 6210

Model 6210 Coupon Holder Assemblies provide a retractable means of coupon monitoring in processes at pressures up to 1500 PSI/10.3 MPa and temperatures up to 500º F/260º C. Insertion of the coupon holder can be adjusted to permit coupon positioning at precisely the desired point within the process.

Standard lengths are available in 18, 24, 30 and 36 inches. All coupon holders are supplied complete with mounting hardware for the coupons.

A safety clamp assembly is recommended at pressures above 100 PSI and temperatures above +150º F.

Specifications

• Pressure Rating – 1500 PSI (10.3 MPa)
• Mounting – 1″ Full Port Valve Minimum
• Temperature Rating – +500º F/+260º C
• High Temperature Option Available (1000º F)
• Material – 316 SS
• Meets NACE MR0175 and MR0103
• Seal Material – Teflon®

Benefits

• Available lengths of 18, 24, 30, and 36 inches
• Pressure rating up to 1500 PSI/10.3 MPa
• Temperature rating up to 500° F/260° C
• 316 stainless steel
• Meets NACE MR0175 and MR0103

Applications

• Provides a retractable means of coupon monitoring in processes
• 1″ full port valve minimum for mounting
• Single tongue of the coupon holder allows the use of one or two strip coupons insulated or uninsulated
